High-Fidelity Multimodal Data Capture
Full-channel 2M @ 60fps recording of every real-world physical interaction. We provide the ultra-rich, high-density raw material essential for training world-class Physical AI.
MEgo Series Products
Redefining Data Acquisition
The MEgo series is a line of embodiment-free acquisition terminals independently developed by Maniformer, comprising two standalone products: the MEgo Gripper (two-finger gripper) and the MEgo View (head-mounted vision device + wrist camera). Both can be used independently or coordinated with each other, providing comprehensive, multi-perspective, and high-quality data support for embodied AI training.
Full-channel 2M 60fps High-fidelity Visual Stream
End-effector Spatial Positioning Accuracy Millimeter-Precision (Industry Best)
Automotive-grade Hardware Time Synchronization Sub-millisecond Frame Synchronization
MEgo Gripper + MEgo View Deep Synergy, Building a Data Closed Loop

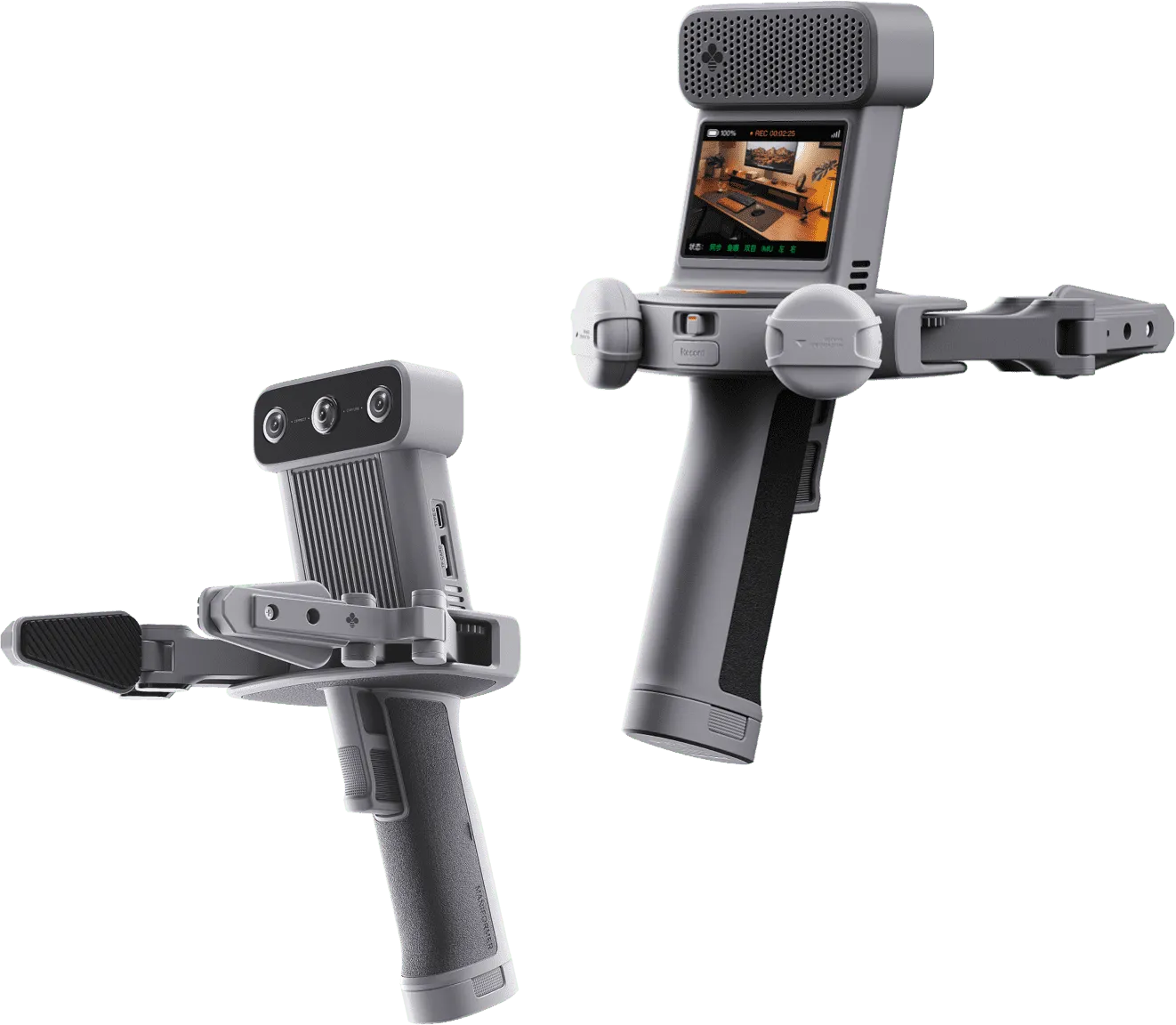

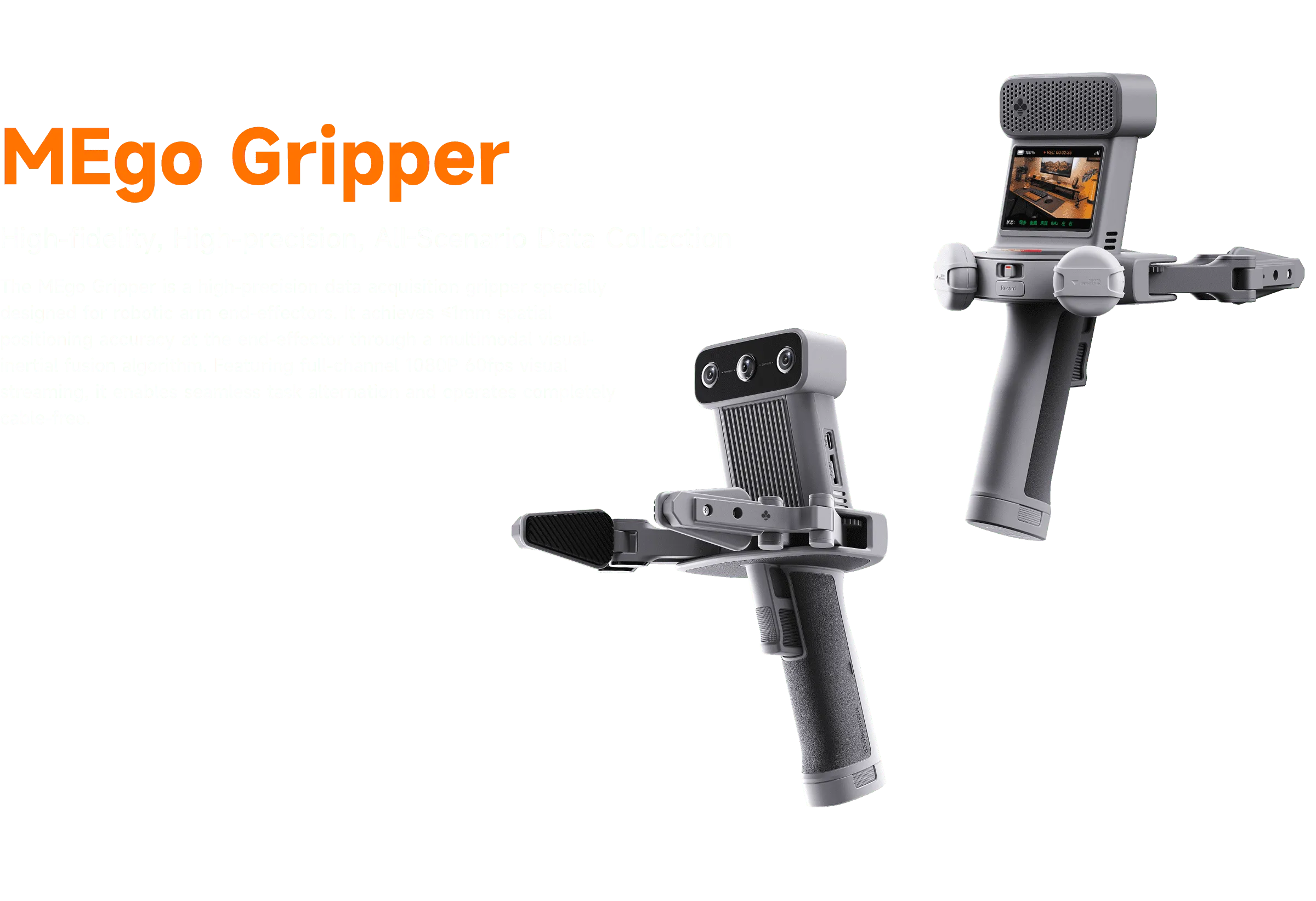

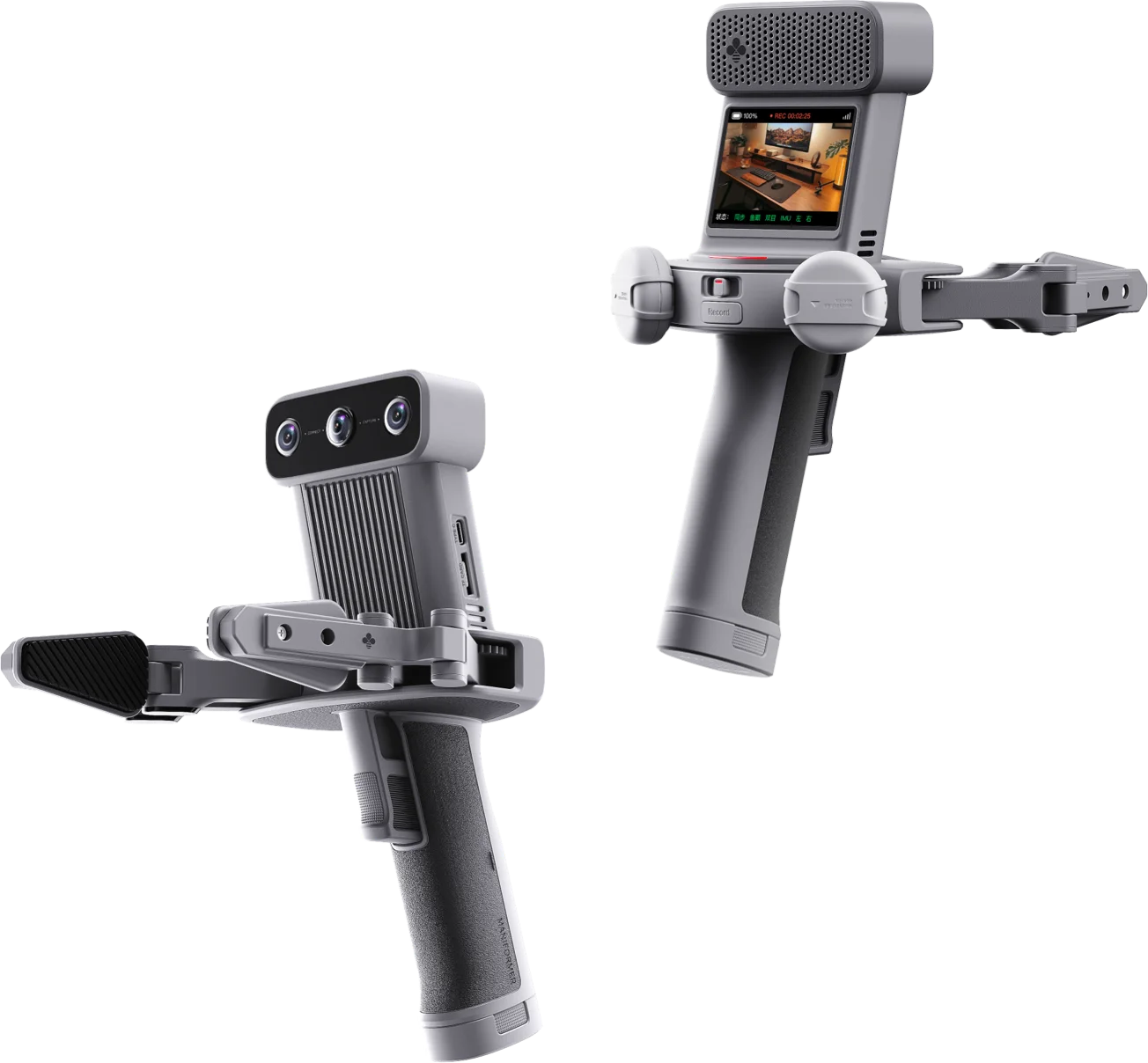

MEgo Gripper
High-fidelity, High-precision, All-Scenario Data Collection

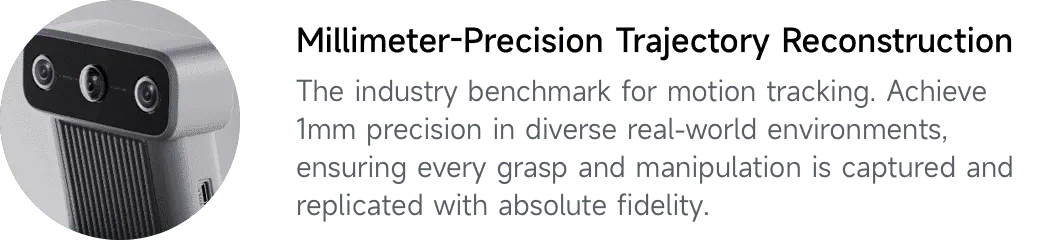

Millimeter-Precision Trajectory Reconstruction
The industry benchmark for motion tracking. Achieve millimeter-precision in diverse real-world environments, ensuring every grasp and manipulation is captured and replicated with absolute fidelity.

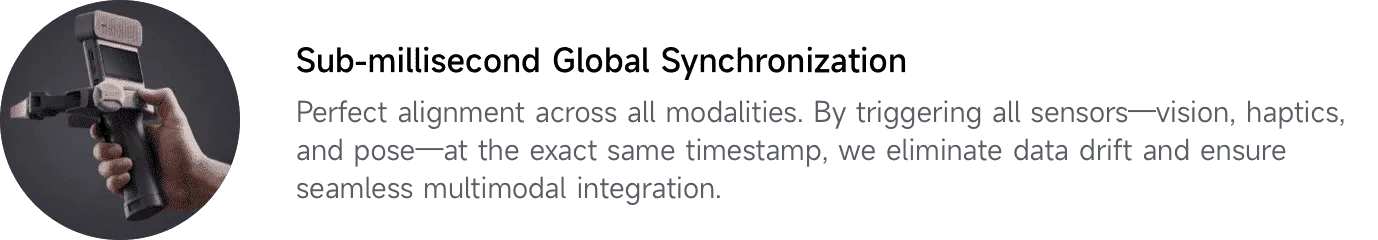

Sub-millisecond Global Synchronization
Perfect alignment across all modalities. By triggering all sensors — vision, haptics, and pose — at the exact same timestamp, we eliminate data drift and ensure seamless multimodal integration.

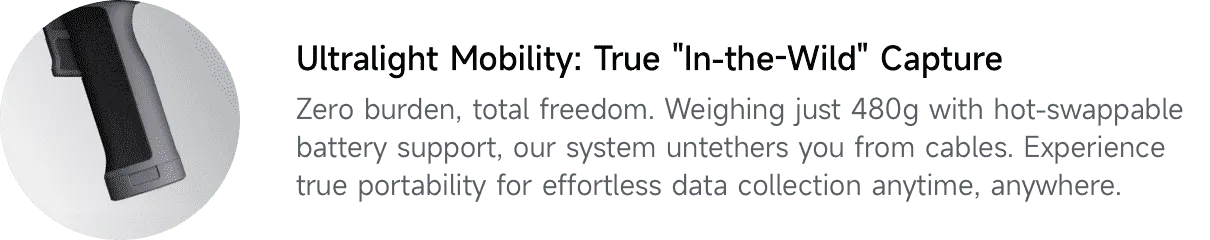

Ultralight Mobility: True "In-the-Wild" Capture
Zero burden, total freedom. With hot-swappable battery support, our system untethers you from cables. Experience true portability for effortless data collection anytime, anywhere.
End-to-End Data Engine
From raw capture to AI-ready insights. Seamlessly upload to the cloud for automated trajectory reconstruction, quality inspection, and intelligent labeling. A one-stop solution for high-quality data governance.
MEgo Gripper Core Parameters
Basic Information
- Gripper Type
- Two-finger standard; Quick-change 3D tactile optional
- Weight
- 587 g (Ultra) / 540 g (Standard)
- Battery Life
- 2.5 hours (Supports Quick-change)
- Data
- Local Storage + Cloud Upload
- Video
- 2M @ 60fps
- Communication
- Wi-Fi 6, USB 3.0
- Synchronization
- Submillisecond Multi-Device Wireless Time Synchronization
- Trajectory Precision
- Millimeter-precision Spatial Positioning
Sensor Parameters
- Fisheye Field of View
- 200°
- Shutter Type
- Global Shutter
- IMU Type
- Automotive-grade 9-axis
- IMU Sampling Rate
- 1000 Hz
- Tactile Array Spatial Resolution
- 1.6 mm
- Force Resolution
- 0.05 N
Output Data Information
- Triple-Camera RGB Images
- Depth Information
- IMU (Inertial Measurement Unit) Data
- Spatial Positioning Trajectory
- Microphone Audio
- Tactile Information
- Gripper Angle
- Gripper Opening Distance

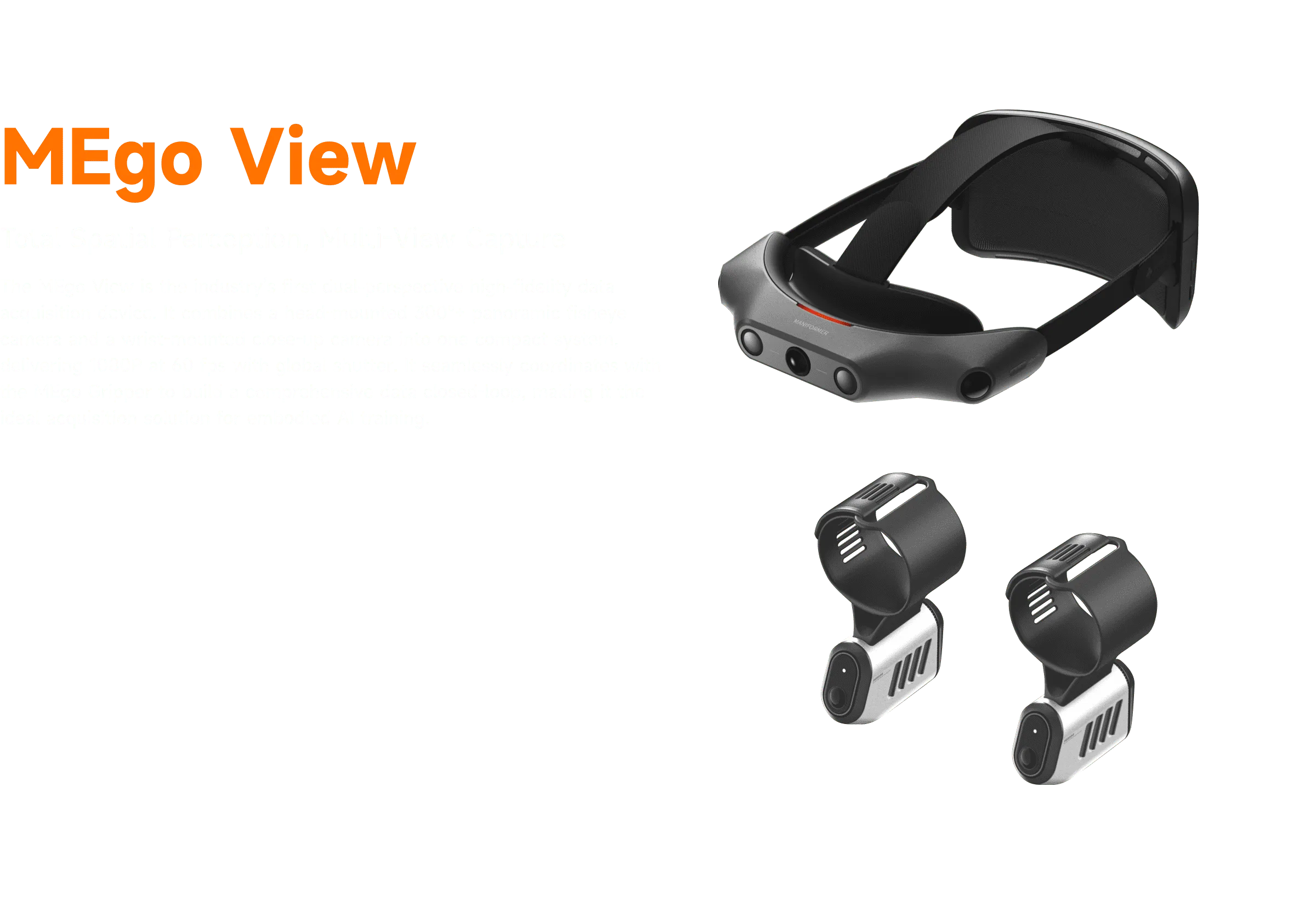

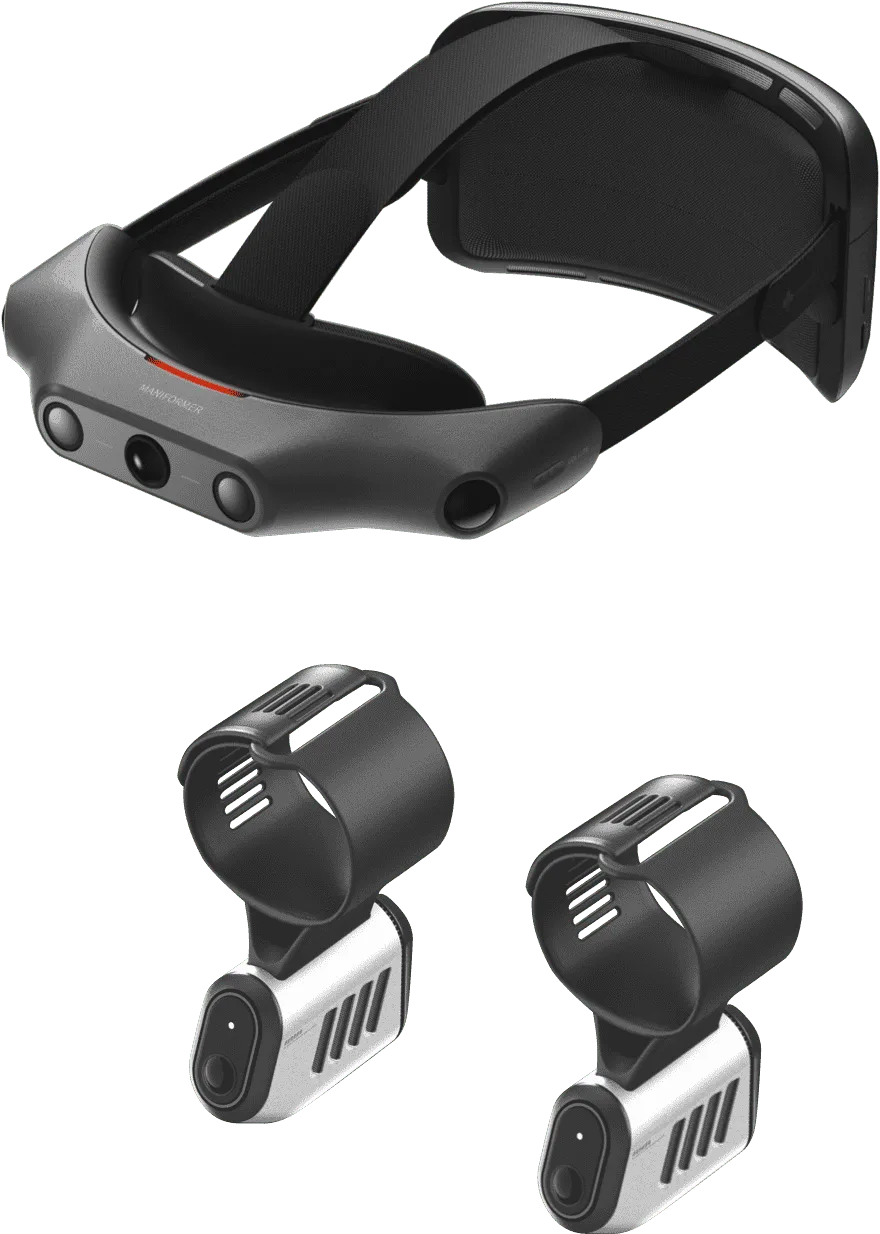

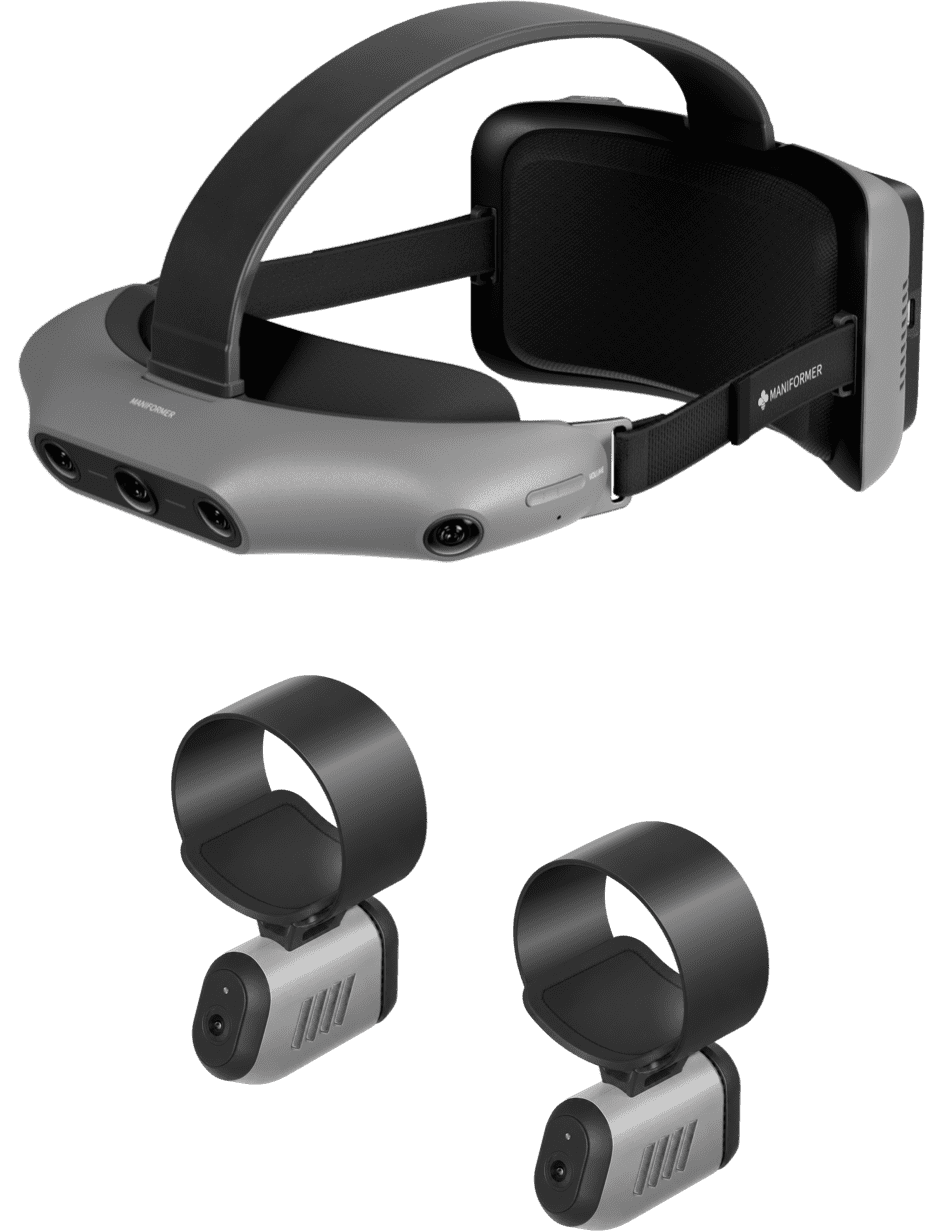

MEgo View
Total Spatial Perception, Multi-View Capture
Pioneering Dual-View Fusion
Industry-first 300° panoramic view combined with wrist-level close-ups. Delivering 2M 60fps HD streams to capture every nuance of real-world physical interaction.
Sub-Millisecond Global Sync
Hardware-level camera triggering and wireless time synchronization ensure sub-millisecond data alignment for absolute precision.

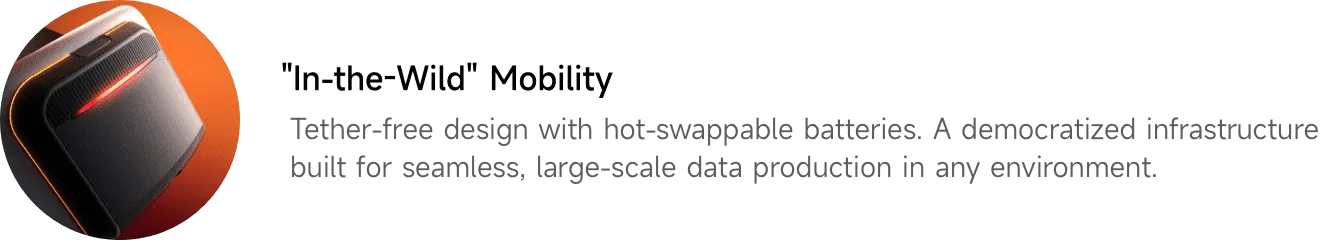

"In-the-Wild" Mobility
Tether-free design with hot-swappable batteries. A democratized infrastructure built for seamless, large-scale data production in any environment.

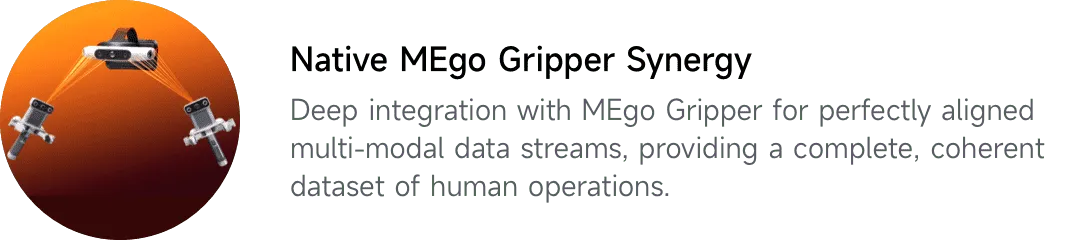

Native MEgo Gripper Synergy
Deep integration with MEgo Gripper for perfectly aligned multi-modal data streams, providing a complete, coherent dataset of human operations.
End-to-End Data Engine
A one-stop cloud pipeline for trajectory reconstruction, pose estimation, and smart labeling. Integrating rigorous quality inspection and data governance to deliver high-quality, training-ready datasets.
MEgo View Core Parameters
Basic Information
- Head Camera
- 3× Fisheye Cameras, 1× Stereo Camera
- Wrist Camera
- 2× Wide-Angle Cameras (L/R)
- Battery Life
- 2 hours (Supports Quick-change)
- Data
- Local Storage + Cloud Upload
- Video
- 2M @ 60fps
- Communication
- Wi-Fi 6, USB 3.0
- Synchronization
- Submillisecond Multi-Device Wireless Time Synchronization
- Shutter Type
- Global Shutter
- IMU Type
- Automotive-grade 9-axis
- IMU Sampling Rate
- 1000 Hz
Output Data Information
- 7-Camera RGB Images
- Depth Information
- IMU (Inertial Measurement Unit) Data
- Spatial Positioning Trajectory
- Microphone Audio
- Human Pose Estimation & Skeleton Tracking
